Surface Mount Assembly
Assembly support for SMD components used in compact and high-density PCB designs.
- SMD component placement
- Compact PCB layouts
- Single-sided or double-sided SMT
SMT Assembly Services
SMT Assembly Services for High-Density Electronics
DQX supports surface mount PCB assembly for compact, high-density and performance-focused electronic products, from prototype builds to batch production.
- Surface-mount assembly for compact PCB designs
- Fine-pitch, SMD and high-density layout support
- Prototype, small batch and repeat production support
Surface mount assembly for compact electronics
SMT support for IoT devices, smart hardware, communication modules and consumer electronics.
SMDCompact components
ReflowSoldering process
Precision SMT Production
Built for Compact Boards, Fine-Pitch Components and Reliable SMT Production
SMT assembly is often used when products require smaller size, higher component density and more efficient production. The quality of the result depends on BOM clarity, component package details, placement accuracy, solder paste control and reflow process review.
DQX supports practical SMT production needs from early engineering validation to repeat manufacturing, including component questions, process requirements, nitrogen reflow options when needed, inspection and final delivery.
01Solder PastePreparation before placement
02PlacementSMD package and polarity review
N2Nitrogen ReflowCleaner atmosphere when required
04InspectionReview before delivery
Capabilities
SMT Assembly Capabilities for Compact and High-Density Boards
SMT projects require attention to component packages, placement accuracy, soldering process and inspection details. DQX supports the key production steps needed for surface mount PCB assembly.
Fine-Pitch Component Support
Production support for boards with smaller packages and tighter layout requirements.
- Fine-pitch IC packages
- Small passive components
- Placement accuracy focus
Prototype and Small Batch SMT
Flexible SMT assembly for engineering validation, pilot runs and early-stage product builds.
- Prototype builds
- Pilot production
- Design iteration support
Batch SMT Production
Stable SMT production support for repeat orders and controlled manufacturing needs.
- Repeatable production
- Process consistency
- Production planning
Nitrogen & Standard Reflow Support
Nitrogen reflow can be used when the project requires a cleaner soldering atmosphere, while standard air reflow remains available for general SMT builds.
- Nitrogen reflow option
- Standard air reflow support
- Solder joint review
Inspection and Testing Support
Inspection and testing support helps confirm SMT assembly quality before delivery.
- Visual inspection
- Functional testing support
- Final QC before shipment
SMT Line Focus
Production Steps Behind Reliable Surface Mount Assembly
DQX focuses on the SMT process details that directly affect assembly consistency, including solder paste preparation, component placement coordination, nitrogen reflow options and inspection before delivery.
01

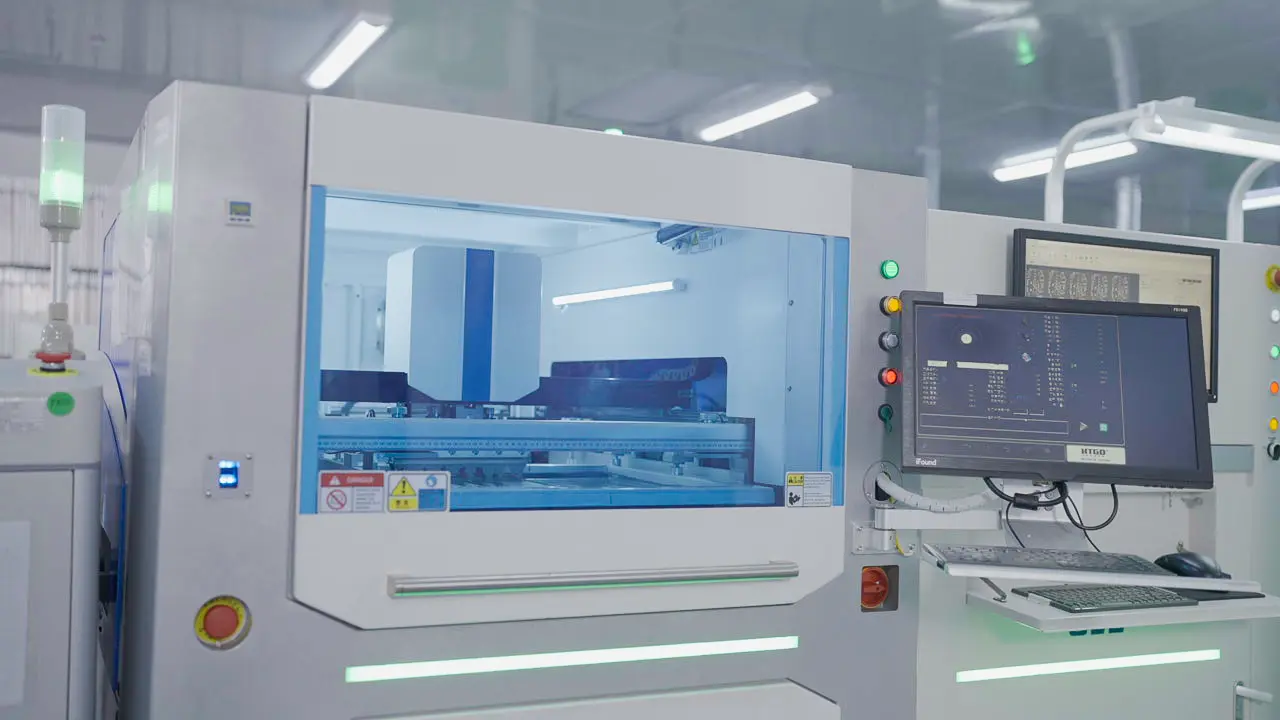

Solder Paste Preparation
Good SMT results start with stable paste application and board preparation. DQX focuses on the early process details that affect solder joint consistency.
Paste control / board prep
02

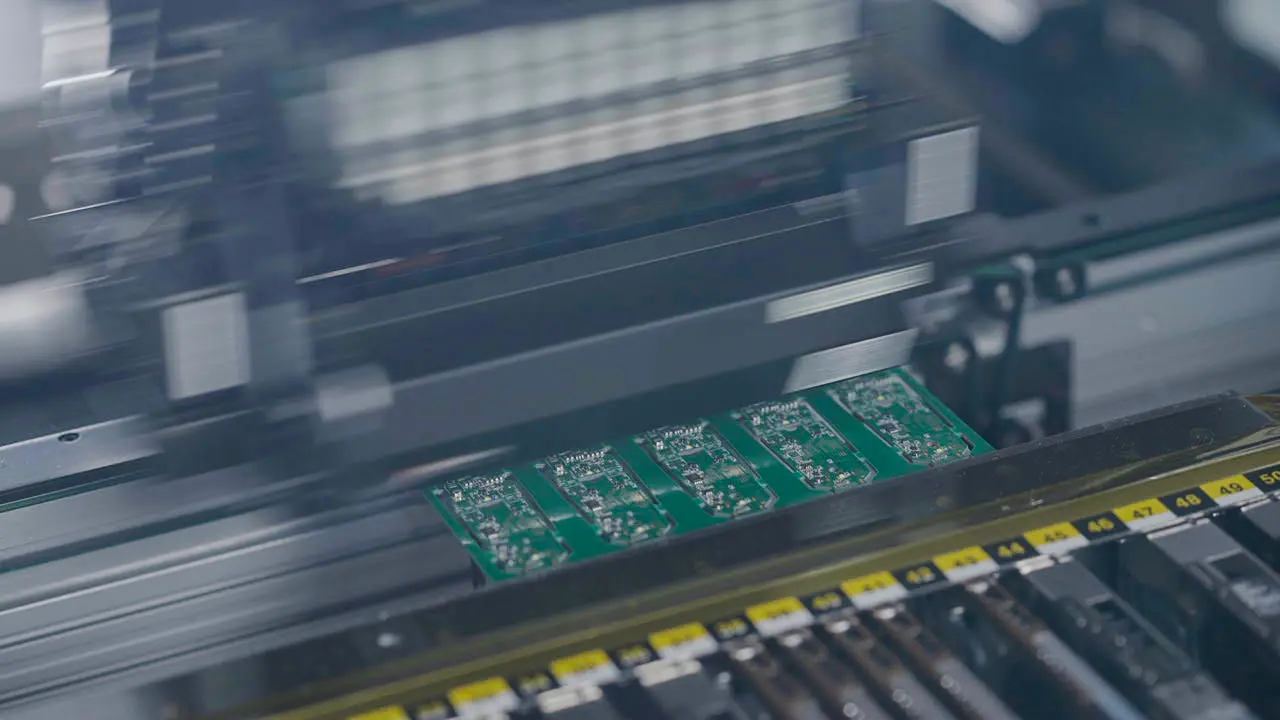

Pick-and-Place Coordination
Package data, reference designators and polarity requirements are reviewed so placement can match the board design and production notes.
Placement / package data
03
N2 reflow option

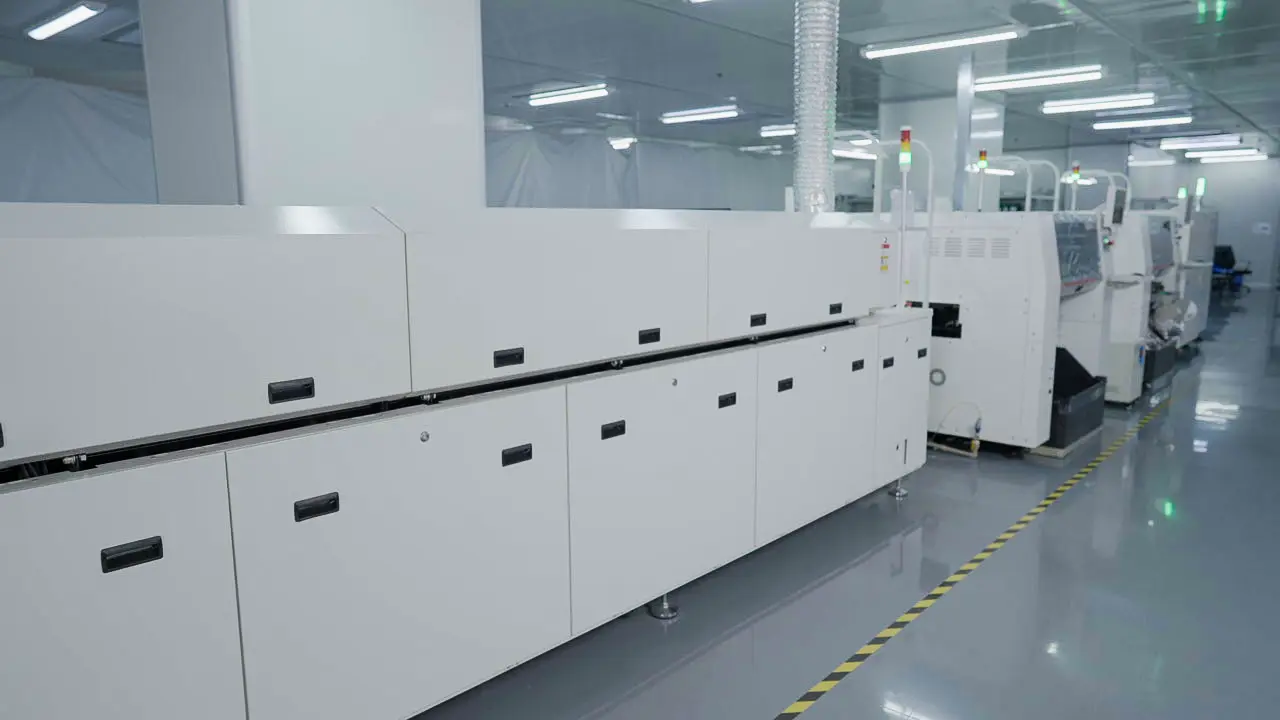

Nitrogen Reflow Soldering
Nitrogen reflow is available for projects that need a cleaner, more controlled soldering atmosphere. Standard air reflow remains available for general SMT builds.
Nitrogen reflow option
04

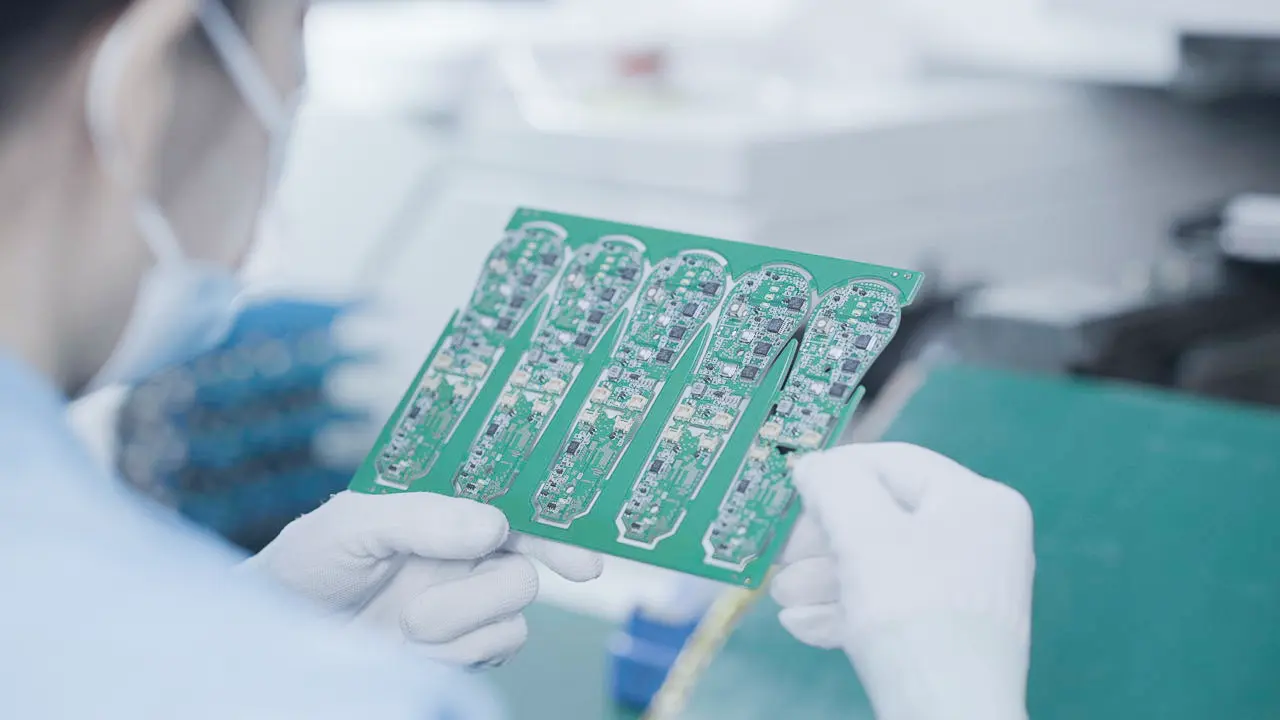

Inspection Before Delivery
Finished SMT assemblies can be checked through visual inspection, project-specific testing support and final QC before packing and shipment.
Inspection / testing / final QC
Process
How DQX Supports Your SMT Assembly Process
A clear SMT workflow helps reduce production uncertainty, especially for compact designs, small components and high-density boards.
Send Requirements
Share BOM, Gerber files, SMT requirements, quantity and testing expectations.
Engineering Review
DQX reviews BOM details, component packages, polarity notes and assembly questions.
Planning & Sourcing
Components, production scope, lead time and process needs are coordinated before SMT production.
Placement Process
Solder paste preparation and component placement are arranged according to the SMT board design.
Reflow & Inspection
Nitrogen or standard reflow soldering is selected according to project needs, followed by inspection support for solder quality and assembly details.
Testing & Delivery
Functional testing support, final QC, packaging and delivery coordination are completed before shipment.
Quality Control
SMT Quality Checks from Paste to Final QC
SMT quality is not controlled by one final inspection only. DQX focuses on the process points that affect soldering consistency, placement accuracy and delivery readiness.
View Full Quality ControlReview paste-related preparation, board condition and production notes before placement starts.
Focus on component package data, polarity, fine-pitch parts and compact SMD layout details.
Use nitrogen reflow when a cleaner soldering atmosphere is required; standard reflow is also available for general builds.
Support visual inspection, project-specific testing, final QC and secure packing before delivery.
DQX Advantage
SMT Support Built Around Practical Project Control
DQX does not treat SMT assembly as a simple placement job. We support the details that affect quotation accuracy, process stability, component coordination and delivery communication.
BOMReview support
SMTProcess focus
QCFinal checks
Clear Engineering Communication
Project questions such as component packages, polarity notes and assembly requirements are clarified before production starts.
Flexible Production Support
DQX supports prototype SMT builds, pilot runs and repeat production so customers can move through different project stages.
Component and BOM Coordination
BOM completeness, part availability and material questions are reviewed to reduce avoidable production delays.
Inspection and Delivery Follow-Up
SMT assemblies can be supported with inspection, testing coordination, final QC and packaging before shipment.
SMT Project Cases
Example SMT Project Scenarios
SMT assembly is commonly used in compact, connected and performance-focused electronic products. These example scenarios show how SMT support can fit different project needs.

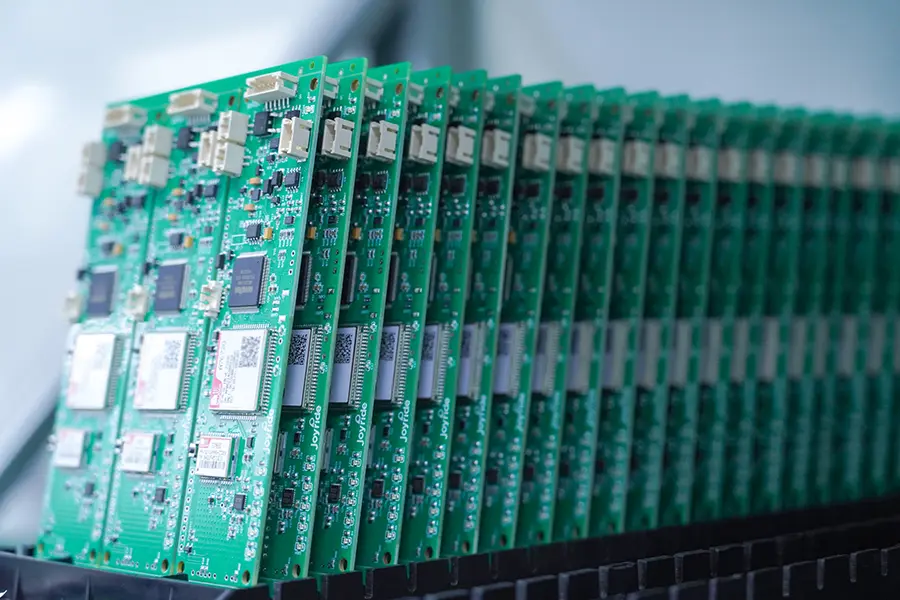

IoT Device PCBACompact SMT assembly for connected device modules
Suitable for sensor boards, wireless modules and smart device control boards that require small SMD components and controlled assembly.
Industrial ControlSurface mount support for control electronics
SMT production can support compact control modules, signal boards and mixed-technology PCBA used in industrial equipment.

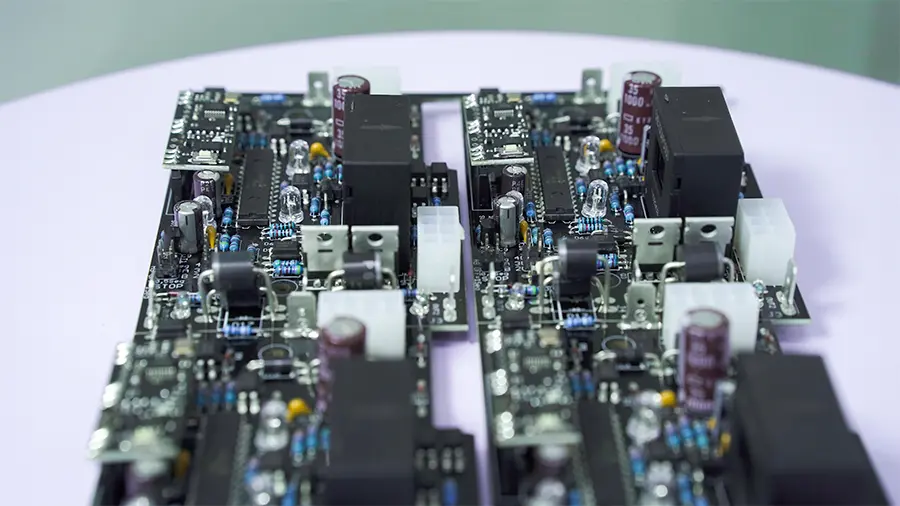

Power ManagementSMT plus inspection support for power-related boards
Projects can combine SMT, through-hole assembly, nitrogen or standard reflow and final QC depending on board requirements.
FAQ
SMT Assembly FAQ
Common questions about surface mount assembly, compact boards, component sourcing and testing support.
View Full FAQWhat is SMT assembly?
SMT assembly, or surface mount assembly, places SMD components directly onto the surface of a PCB. It is commonly used for compact and high-density electronic products.
What types of products are suitable for SMT assembly?
SMT is suitable for IoT devices, consumer electronics, smart home products, communication modules, sensors and other compact electronic assemblies.
Do you support prototype and small batch SMT assembly?
Yes. DQX supports prototype SMT builds, pilot runs and batch production depending on your project stage and production requirements.
Can DQX help review BOM and component availability?
Yes. DQX can review BOM information, component package details, material availability and production-related questions before SMT assembly.
Can functional testing be arranged after SMT assembly?
Functional testing support can be arranged when customers provide testing requirements, procedures, fixtures or acceptance standards.
Project Support
SMT Assembly Can Be Combined with the Support Your Build Needs
Use SMT as a focused production step, or combine it with sourcing, through-hole assembly, functional testing and delivery coordination for a more complete PCBA workflow.
SMD placement, solder paste process, reflow soldering and final inspection support.
Available for projects that require a cleaner, more controlled soldering atmosphere.
Through-hole assembly can be combined with SMT for mixed-technology PCBA builds.
Testing support can be arranged when requirements, fixtures or procedures are provided.
Component package, availability and sourcing questions can be checked before production.
Final QC, packing and shipment coordination support the delivery stage of your project.
